Krispy Workshop's
KrispyGauge 60mm CAN Gauge
60mm round touchscreen CAN bus gauge that fits 52mm or 60mm mounts
US$477
US$421
+ US$0 for the , once however many gauges. Buying more than one? The rest daisy-chain on XH4 leads. Additional OBD cables can be bought separately in the accessories section.
Black Friday Deals!
Approximate — this gauge is priced in New Zealand dollars at NZ$750, and Stripe converts to your currency at checkout.

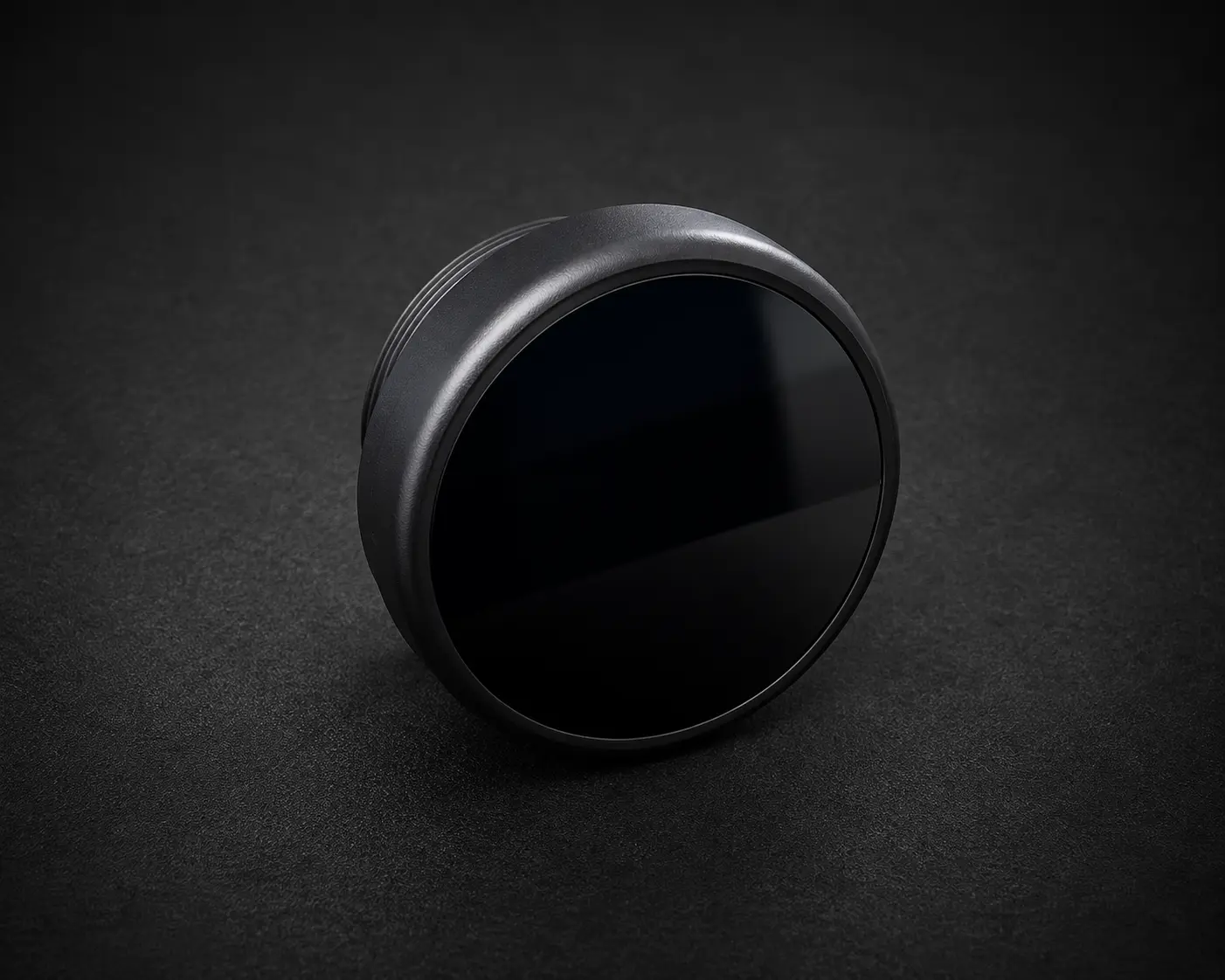

The KrispyGauge 60mm is a larger round colour touchscreen gauge with a proud bezel that reads your ECU over CAN bus. Choose what it shows, from boost and AFR to temperatures and pressures, and set it up from any phone or laptop over Wi-Fi.

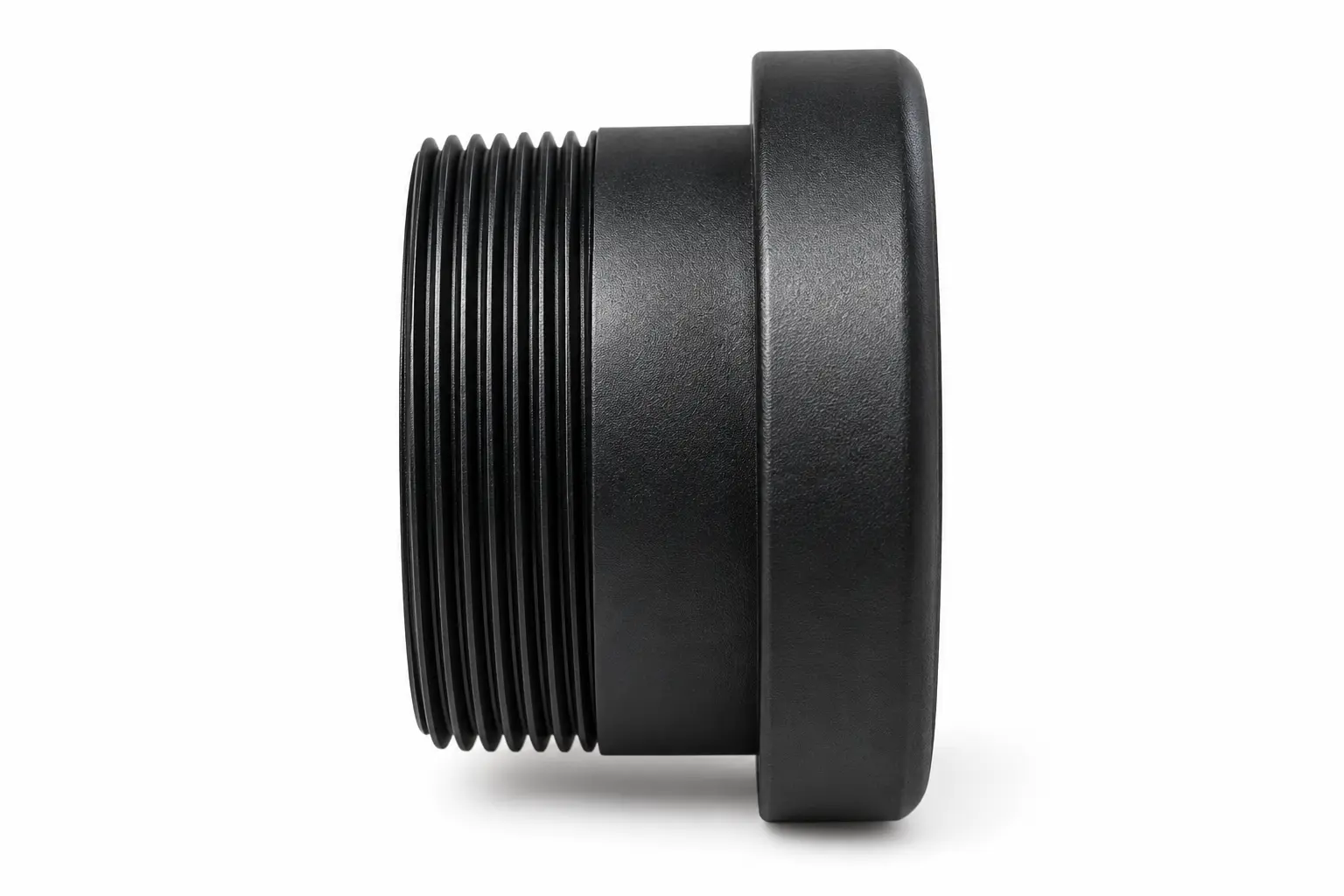

It fits any standard 52mm or 60mm gauge pod or dash panel, using the included size adapter for 60mm. Prefer the classic size? See the KrispyGauge 52mm.
Works with
- Haltech CAN protocol, including Haltech CAN keypad emulation
- OBD2/EOBD over ISO 15765-4 (CAN): check your car
- Link, MaxxECU, Holley, Megasquirt, AEM, EcuMaster, Emtron, rusEFI, Syvecs, TurboLamik and NMEA 2000 in beta: see every supported signal
- Standalone Haltech TCA modules, AEM thermocouples, AEM 6-channel sensor modules and Haltech Wideband in beta
Features
- Full round colour touchscreen
- Programmable warning thresholds with full-screen alerts
- Live telemetry streaming to VRacer over Bluetooth
- 12V–24V compatible, 0.200 A peak draw
Setup guides, wiring and firmware updates are on the KrispyGauge support page.
Ships with
- 1 × KrispyGauge 60mm CAN Gauge
- 1 × XH4 to XH4 lead
- 1 × Retaining Clamp
- 1 × DTM-4 Female Connector
Secure checkout by Stripe. Cards, Apple Pay and Google Pay accepted. Questions? Get in touch.
Shipping calculated at checkout.
