Krispy Gauge OBD Cable
1.5M OBD Cable Pre-Wired for KrispyGauge
US$45
+ US$0 for the , once however many gauges. Buying more than one? The rest daisy-chain on XH4 leads. Additional OBD cables can be bought separately in the accessories section.
Approximate — this gauge is priced in New Zealand dollars at NZ$80, and Stripe converts to your currency at checkout.

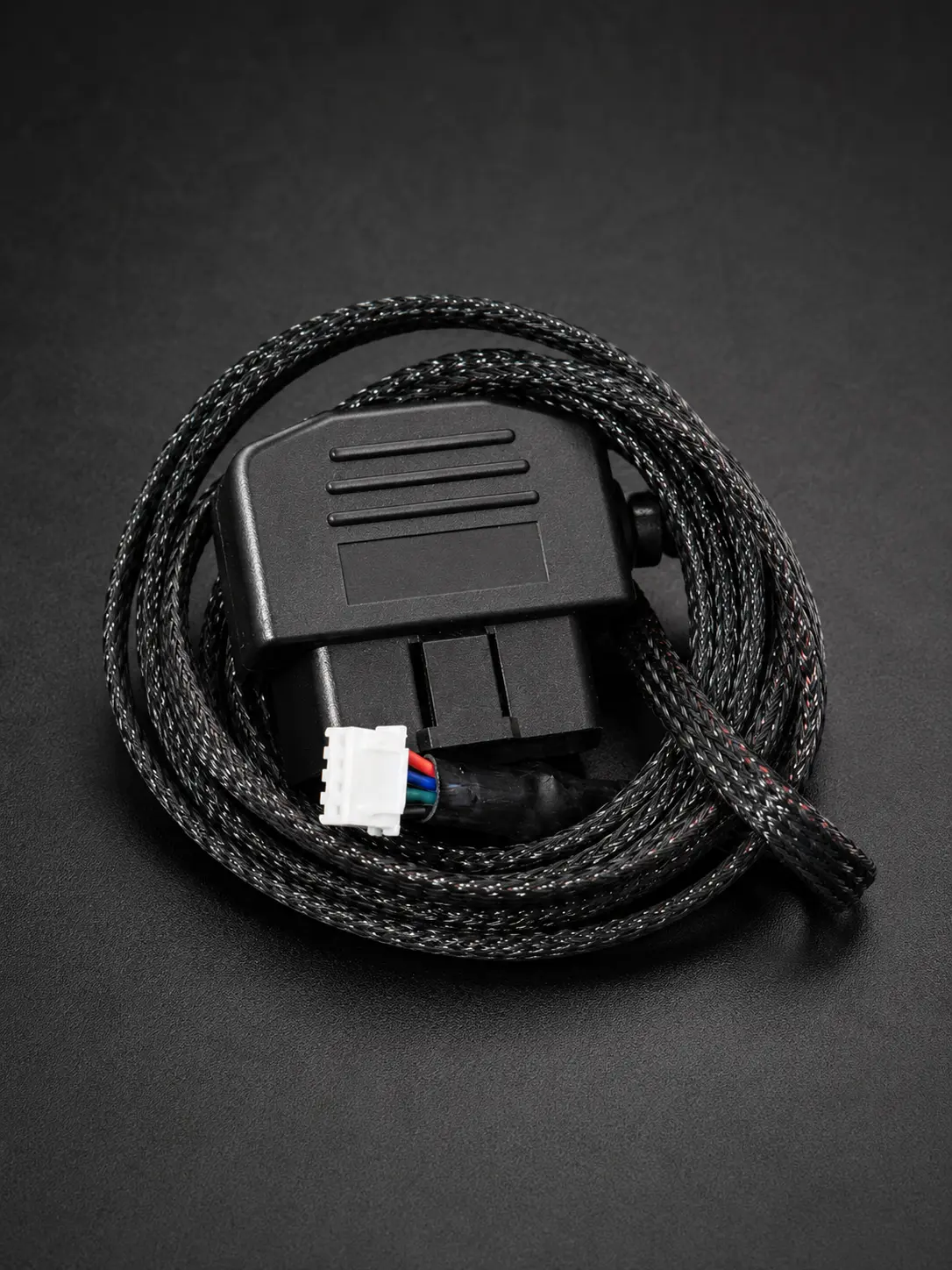

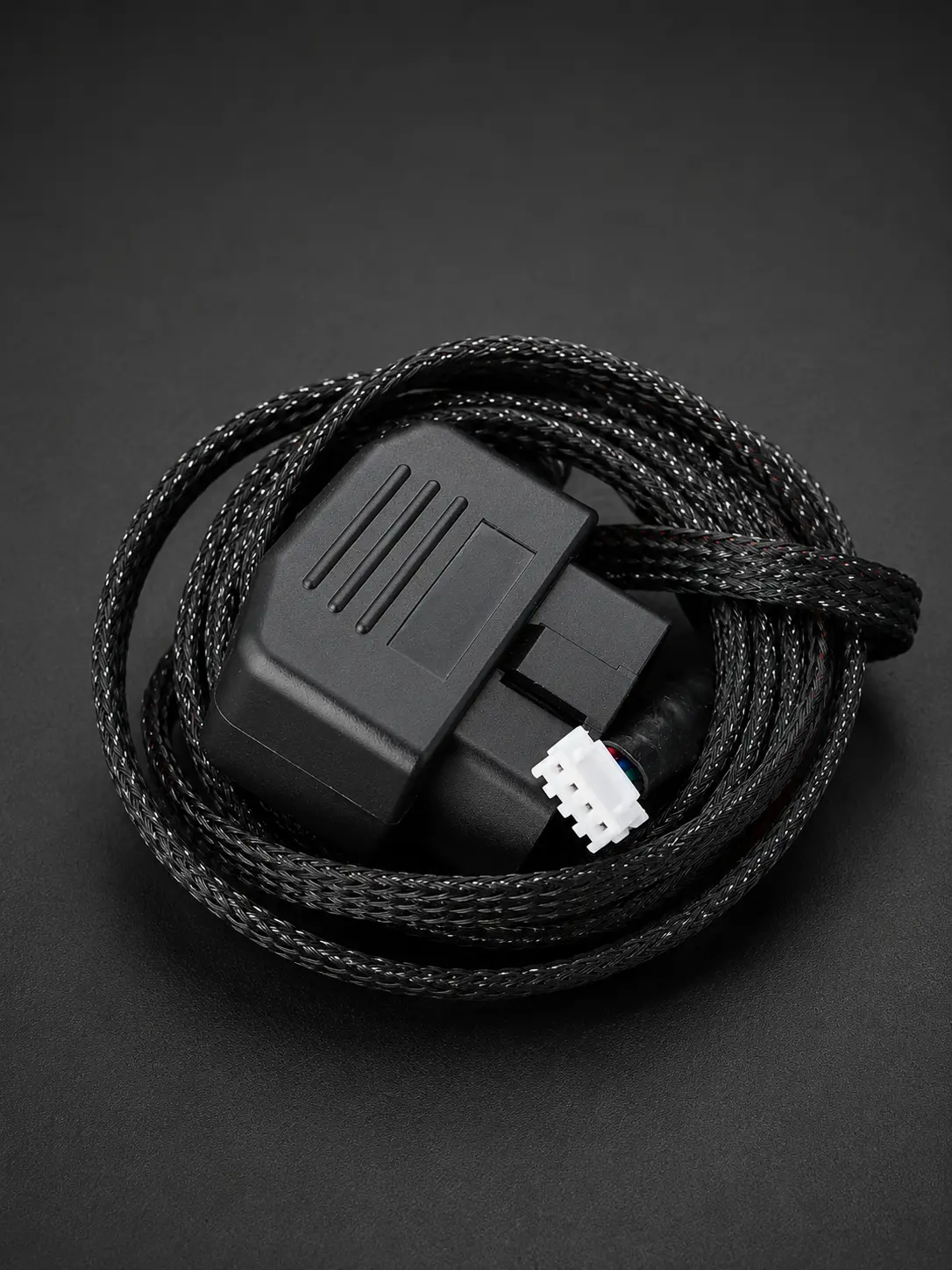

A 1.5m cable from your car's OBD port to the KrispyGauge's 4-pin XH connector, pre-wired and ready to plug in.
It's for OBD/EOBD vehicles that use ISO 15765-4 (CAN) only. Vehicles using the older pre-CAN OBD-II protocols (ISO 9141-2, ISO 14230 KWP2000, SAE J1850 PWM and SAE J1850 VPW) are not supported and will not communicate with the gauge.
As a rule of thumb, anything from 2008 onward is CAN-based, but the changeover happened at different times by market and manufacturer. Treat the year as a guide rather than a guarantee, and check your car on the OBD2 supported vehicles list before you buy.
Older K-Line car? The K-Line to CAN adaptor lets it talk to a CAN gauge.
Secure checkout by Stripe. Cards, Apple Pay and Google Pay accepted. Questions? Get in touch.
Shipping calculated at checkout.
